Overview

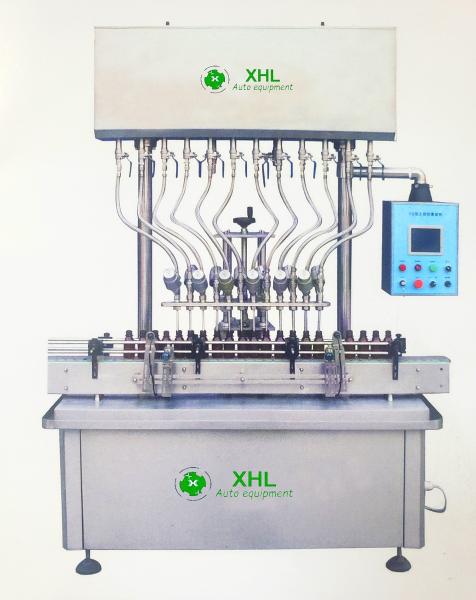

AGF automatic gravity liquid filling machine adopt logic controller PLC, 6M LCD touch screen system, normal pressure flow passage parameters, set the flowing time to control different quantity. It applys to pharmaceutical, foodstuff, pesticide, chemical, etc.
Features
-Man-machine English-Chinese interface, intelligent contact screen, human design, easy operation.
-Imported filling valve, avoiding drop leaking, accurate filling quantity.
-Program logic controller (PLC), easy for changing size or modifying parameters.
-Pneumatic elements are all imported, stability and reliability.
-Accurate liquid sensing, automatically adding liquid, ordinary pressure flow passage parameters.
-Solely and specially-designed whole lifting device, easy managing to meet the needs of all kinds of container filling.
-Photo-electric sensing and pneumatic integrated control, automatic protection for shortage of bottles.
-Pneumatic actuated control valve, high efficiency and safety. Each flow passage can be separately controlled and cleaned.
-Close positioning design, easy regulation, suitable for filling of all sizes of bottles.
-The whole machine is designed according to GMP requirements.
Main Technical Parameter
| ITEMS | AGF-8 | AGF-12 | AGF-16 | AGF-20 |
| Filling nozzles: | 8 | 12 | 16 | 20 |
| Filling range: | 50-5000ml | 50-1000ml |
| Filling speed(100ml): | 40-60BPM | 60-80BPM | 70-90BPM | 80-100BPM |
| Filling precision: | 20-1000ml:≤±2%, 1000-5000ml:≤±1% |
| Air pressure range: | 0.4~0.6MPa |
| Power supply: | 220V 50/60Hz |
| Power output: | 0.5kw | 0.5kw | 0.75kw | 0.75KW |
| Single machine noise: | ≤50dB |
| Net weight: | 500kg | 600kg | 700kg | 800kg |

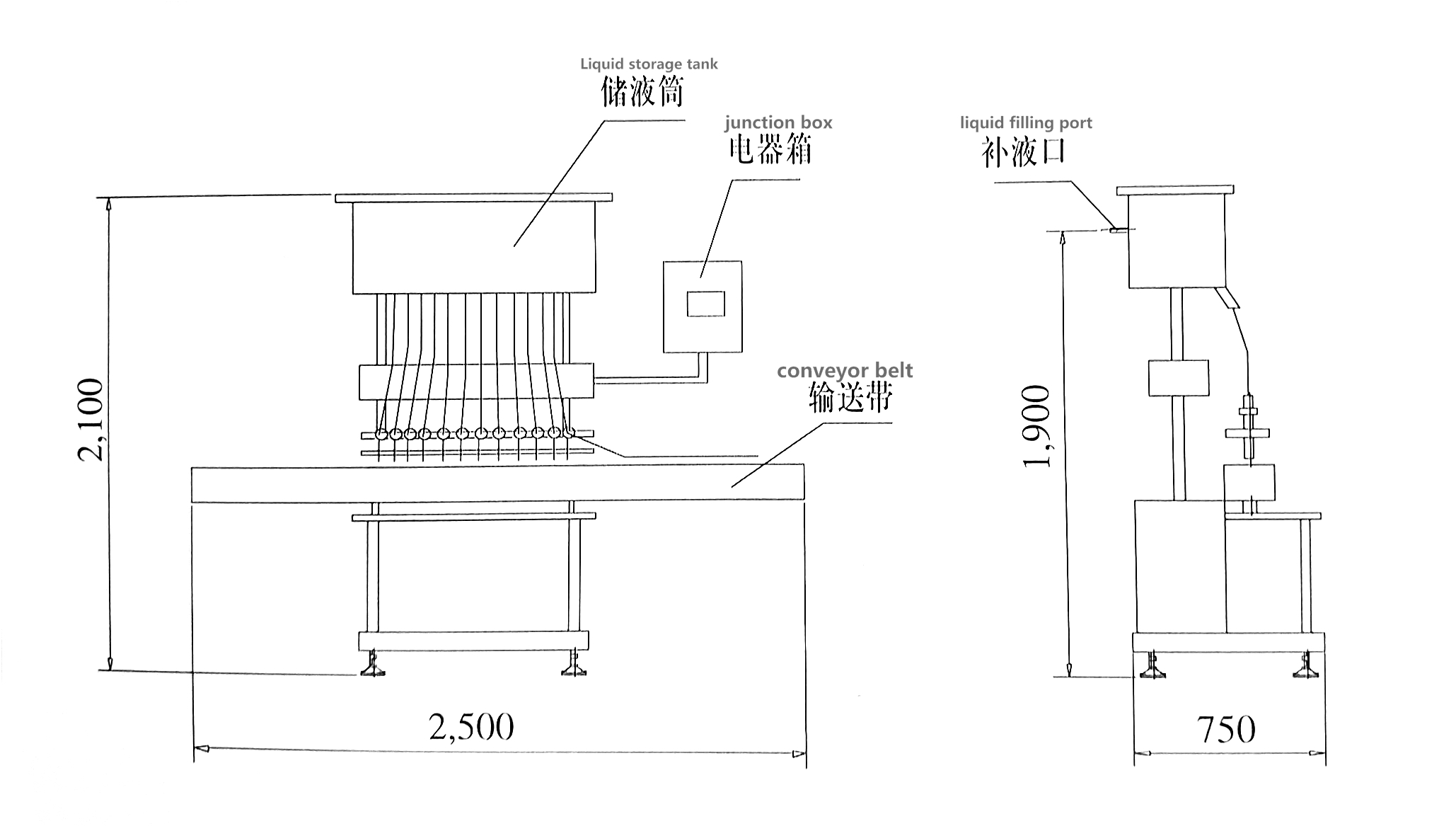

| Overall dimension: | 1800*800*2500 | 2000*800*2500 | 2200*800*2500 | 2400*1200*2500
|
About us
-Listed company founded in 2003(WINLONG GROUP CORPORATE)
-17 years’ manufacturing experience in the aseptic filling production line.
-Exclusive manufacturing factory of 20,000 square meters (Changzhou, Jiangsu)
-More than 100 famous enterprise business partners across China.
-Expanded global business network
-Proven design, efficient and reliabile products.
-Customized design to meet the customer’s demand.
Our Services and Warranty
1.We can customize the machine as customer required.
2.Available for OEM/ODM service.
3.Offer living broadcast or video support.
4.To Door installation and training service.
5.Offer filling line solution with customer requirement.
6.Customer’s design are welcomed.
7.Competitive price with on-time delivery.
8.Main spare parts one year warranty ( personal damaged except ).
We can customize with your packaging materials, production capacity and demands.
We will provide you with associated design solutions and case videos.
