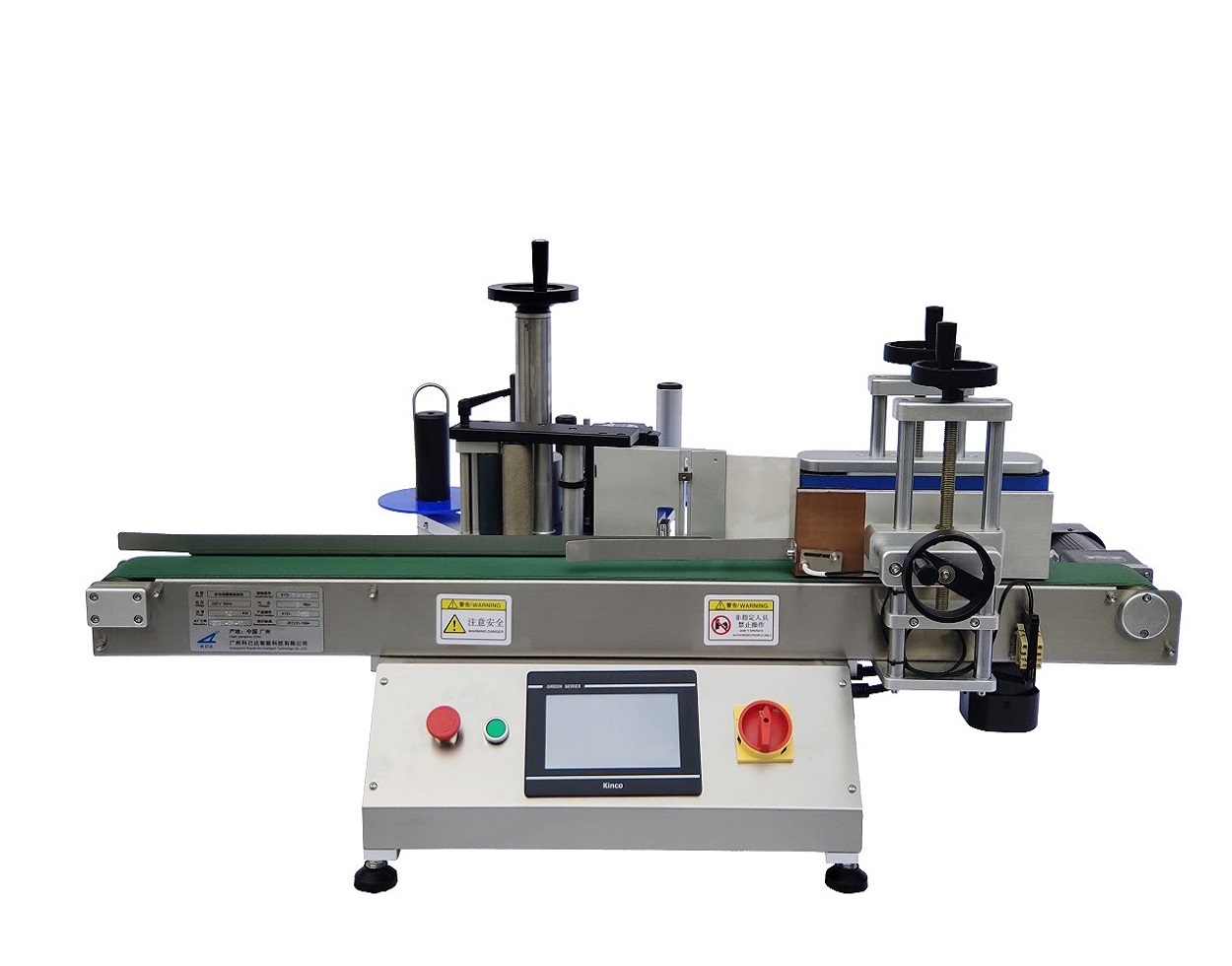

Performance Features
-Rotary squeeze the bottle body, using elastic cotton belt, the label adheres more uniform and firm, without wrinkles.
-The machine structure is simple and compact, easy for operation and maintenance.
-The rear section can be connected with the assembly line, and also equipped with a material receiving turntable, which is convenient for the collection, sorting and packaging of the finished products.
-It is suitable for semicircle and circular labeling of circular objects in medicine, food, daily chemicals and other industries.
-It is driven by well-known brand motor, and the delivery speed is stable and reliable.
-Advanced friendly human-computer interface system, simple and intuitive operation, complete functions, with rich online help.
-Automatic photoelectric detection, eqipped with no bottle no labeling.Label shortage, or missed labeling, label break, the machine will automatic stop and send an alarm. Lamp automatic detection function. Place the missed labeled bottles.
Main Technical Parameters
Applicable bottle: Diameter 25-100mm Applicable label scope: Width 10-100mm, Length 10-220mm
Labeling speed: 5-40m/min Labeling accuracy: ±1mm
Power supply: 220V 50Hz Power output: 1.3 kw
Conveyor width: 88mm, PVC belt, 5-20 m/min Conveyor belt elevation level: 320 mm ±20 mm
Label reel inner diameter: 76mm Label reel outside diameter:
Maximum 300mm
About us
-Listed company founded in 2003(WINLONG GROUP CORPORATE)
-17 years’ manufacturing experience in the aseptic filling production line.
-Exclusive manufacturing factory of 20,000 square meters (Changzhou, Jiangsu)
-More than 100 famous enterprise business partners across China.
-Expanded global business network
-Proven design, efficient and reliabile products.
-Customized design to meet the customer’s demand.
Our Services and Warranty
1.We can customize the machine as customer required.
2.Available for OEM/ODM service.
3.Offer living broadcast or video support.
4.To Door installation and training service.
5.Offer filling line solution with customer requirement.
6.Customer’s design are welcomed.
7.Competitive price with on-time delivery.
8.Main spare parts one year warranty ( personal damaged except ).
We can customize with your packaging materials, production capacity and demands.
We will provide you with associated design solutions and case videos.
